internal profile: flat 86 mm with flat or rounded glass stop, cut junction 45°

internal profile internal
profile
Cut junction 45° cut
junction

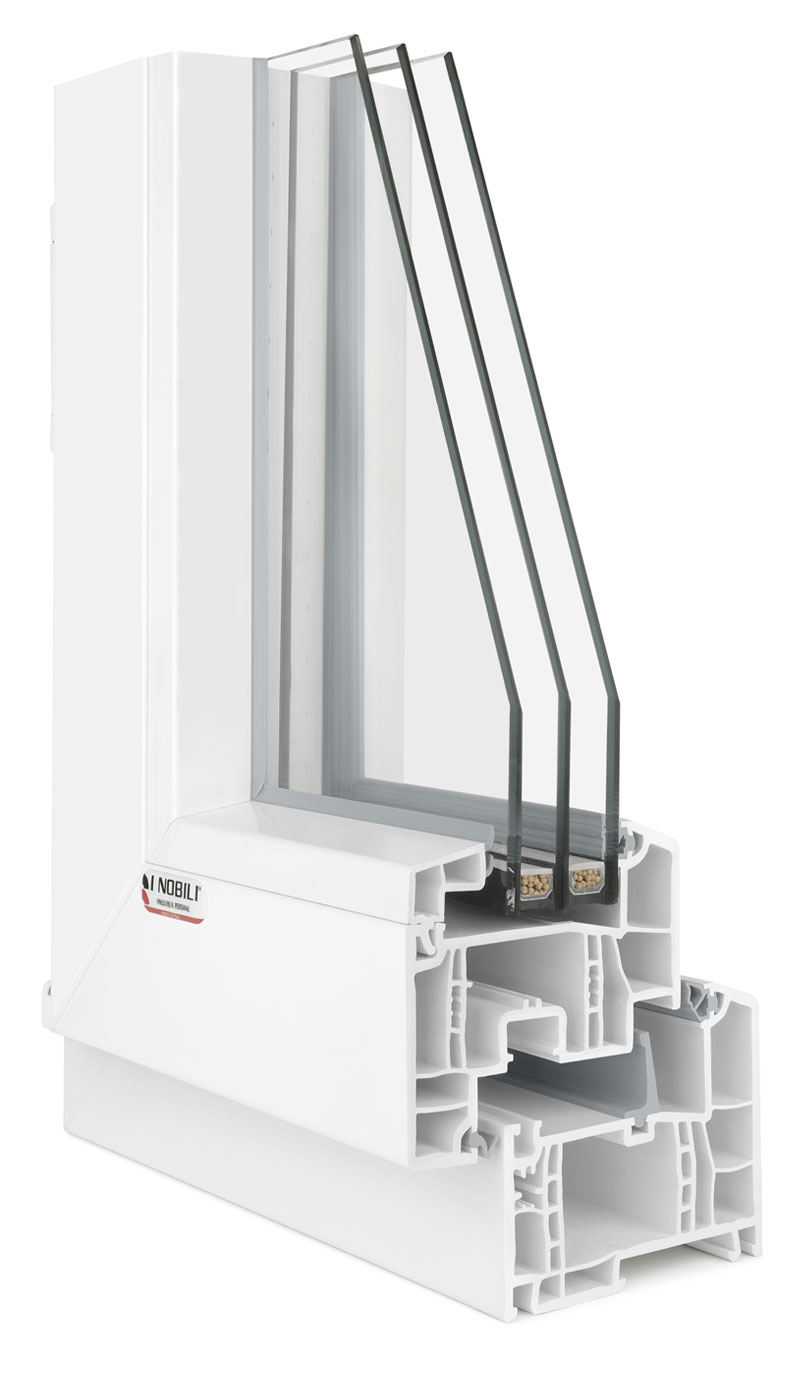

frame section 86 mm with 6 chambers

fixed profile L or Z 40 mm

thermal spacer in two colors:

  • 1. RAL 7035 (clear grey for clear interior colors)
  • 2. RAL 9004 (black for dark interior colors)
with argo gas

Low Emissive glass with an internal security sheet of glass possibility to insert a triple glass

triple glass

External flat profile, cut junction 45°

External flat PVC profile 45° external
profile
Cut junction 45° cut
junction

ASK INFORMATIONS OR A PREVENTIVE
Energy A class, window right for passive houses - I NOBILI

THE WINDOWS THAT IMPROVE LIFE QUALITY

Visconte HP line is perfect for that people who expect a great energetic efficiency. The profile in RAV-FIPRO® eliminates draughts that could enter in a house, by economizing more than 1.000 litres of energy destined to heating and cooling, by contributing to reduce the CO2 in environment. Visconte HP line is not only with a high thermal efficiency but also it has the advantages to isolate houses from noises effectively. They are a clear example of technology that contributes to improve life quality, because, it not only increase house comfort, but also allows to have more free time thanks to anti dust surfaces, easy to clean. The use of innovative gasket reduces closing pressure and simplifies opening action.

Profile with thermal mode, for passive houses (in addition).

Exclusive system for VISCONTE HP windows unique is its category with a thermal transmittance coefficient till Uf=0,85 W/m²k is realized in RAU-FIPRO®, a material very technological and with high performances.

For satisfy completely passive houses requisites VISCONTE HP could be implemented with an expanded insert in a functional chamber and with a glass characterized by 3 sheets.

This diagram expresses temperature from external to internal, by highlighting difference (15° approximately) during summer and winter time. The example is referred to cold season; in this case window insulation determines a notable energetic conservation and consumption.

VISCONTE HP window 2 doors, sliding door to the right. White in bulk.

THE BEST WINDOWS FOR PASSIVE HOUSES

Waste reduction is an important factor for realizing buildings with high energy conservation.
Today there are more and more fossil fuel and with a high price; it is necessary to use them in a reasoning and responsible way also in building section and in that of construction. VISCONTE HP in combination with suitable glasses is right for passive houses. The structure of material is in composite fibre with a steel reinforcement, with the elimination of thermal bridges. The system is characterized by a central gasket and thermal optional modules. If it is installed in a normal depth of installation, that allows to have conformity values about heat insulation for passive houses.

RAU FIPRO

The materials are characterized by two principal elements: base material and fibre-reinforced material. The interaction between them improve window capacity. VISCONTE HP line is realized with RAU-FIPRO®, an innovative reinforced PVC with fibres. The RAU-FIPRO® gives high sound insulation performances: for these reason it is not used steel reinforcement, by eliminating thermal bridges. The PVC stratum applied over structure base in RAU-FIPRO®, make window’s surface smooth and guarantees a high definition (HDF surface). The materials in composite fibre are used also in aeronautic sector.

I PLUS

VISCONTE HP is synonymous of efficiency concerning sound and heat insulation. VISCONTE HP is characterized by a depth of 86 mm, and for this reason it is distinguished by its full framework without steel reinforcement, that allows to reach a stability without precedents: all it’s due to RAU-FIPRO®, the hi-tech material in composite fibre, realized ad hoc for guaranteeing resistance and durability for years. RAU- FIPRO® is used in system as the profile’s core for giving an exceptional rigidness to torsion and a lightness without comparison.

HEAT INSULATION

Heat insulation: Uf = fino a 0,85; energetic conservation: till 76% (compared to other windows in wood/other polymeric materials with Uw= 2,7 W/m²K

SOUND INSULATION

Till to five class without steel framework, Rw,P = 47 dB with a glass Rw = 50 dB

RESISTANCE TO BREAK-IN

Till to three resistance class, without steel till two resistance class

STABILITY AND LIGHTNESS

VISCONTE HP has the same stability of traditional profile reinforced with steel, however, compared to the same it is lighter of 40%.

MORE SPACE FOR DESIGN

Windows with slender lines (115 mm architectural encumbrance) that could reach dimensions up until today prohibited.

RECYCLABE

Innovation is strictly linked to respect for environment. VISCONTE HP inserts itself in a standard recycling process, with a cycle of RAU-FIPRO® material qualified.
